20000BPH Automatic Monoblock PET Bottle Kombucha Filling Machine

Product Categories
Zhangjiagang Navan Industrial Co., Ltd.
Contact Now

20000BPH Automatic Monoblock PET Bottle Kombucha Filling Machine

  • 1
  • 2
  • 3

Brand Name : NAVAN MACHINE

Model Number : CGF40-40-10/12

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : 61,500USD

Payment Terms : L/C , T/T / Cash / West Union / MoneyGram

Supply Ability : 100 Sets Per Year

Delivery Time : 20-45 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package/PE Film Package

Material : Food stage stainless steel

Control : PLC & touch screen control

Capacity : 19000-20000BPH@500ml

Suitable Bottle : PET Bottle

Bottle volume : 200-2000ml

Dimension : By order

Function : Washing Filling Capping

After-sales service provided : Engineers available to service overseas/Online support

Contact Now

20000BPH Automatic Monoblock PET Bottle Kombucha Filling Machine

CGF three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of tea , juice , non-carbonated drink etc.

Product Paramenters:

ModelCGF40-40-10/12
ApplicationSpring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping40-40-10/12
Production Capacity(500ml)19000-20000BPH
Filling precision≤±5mm(liquid level)
User Ambient ConditionsTemperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2500ml
Diameterφ=50-115mm
Bottle height H=150 ~350mm
Bottle typePlastic bottle / PET Bottle
Bottle neck/Cap StylePlastic Screw Cap φ=20-50mm
Machine materialFood stage SS304 OR SS316
Air source pressure0.5~0.6Mpa
Filling way/principleGravity filling method
Control systemSIMENS PLC+ TOUCH SCREEN
Features No Bottle No Filling No Bottle No Capping
Main Power 7.5kw
Power SupplyVoltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)4600*2800*2600
Weight (kg)8500
All machines could be customized , we could design and produce machines according to your request.


Rinser Station:

  • Into bottle way is air conveyor direct connection with bottle dial.
  • All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
  • 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
  • 304/316 stainless steel washing pump make the machine more durable.

20000BPH Automatic Monoblock PET Bottle Kombucha Filling Machine

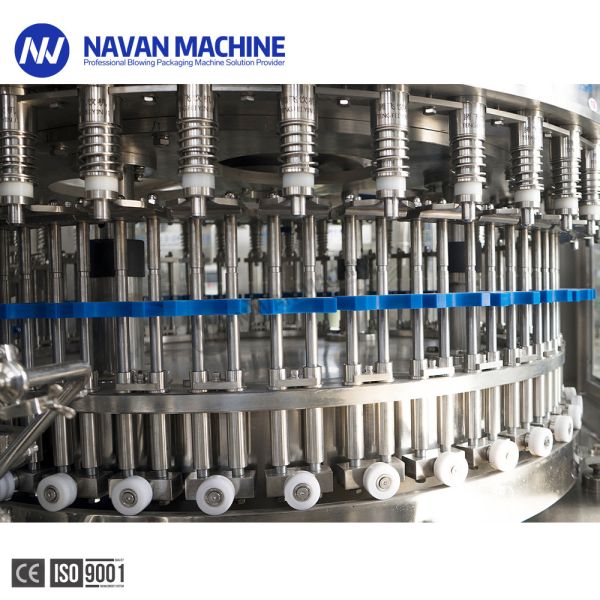

Filler station

  • - 304/316 Stainless steel high precision filling nozzle
  • - Filling volume adjustable in fine rank, same liquid level after filling
  • - All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
  • - 304/316 stainless steel filling pump
  • - Efficient spray nozzle rinse thoroughly and save water for flushing

20000BPH Automatic Monoblock PET Bottle Kombucha Filling Machine
Capper Station

  • - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
  • - All 304/316 stainless steel construction
  • - No bottle no capping
  • - Automatic stop when lack of bottle
  • - Capping effect is stable and reliable, Defective rate ≤0.2%

20000BPH Automatic Monoblock PET Bottle Kombucha Filling Machine
Electric Part & Safe Device & Automation:

  • When accident system automatic stop & alarm
  • Emergency switch when accident
  • PLC , Touch-screen Control Panel & inverter
  • Food Grade 304 stainless steel rinsing pump, reliable & sanitary

Machine Base & Machine Construction:

  • 304 stainless steel frame
  • Tempering Glass window, Clear & no odor
  • Excellent start wheel design, easy change over parts
  • Machine Base with anti-rust process, ensure the forever antirust
  • All seal where liquid may Leakage & base neck come with rubber, water proof
  • Manual lubrication system
Company Profile
Zhangjiagang Navan Industrial Co.,Ltd
Zhangjiagang Navan Industrial Co., Ltd. is a professional manufacturer of beverage machinery in China.
Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also alcoholic drink filling machine, 5 Gallon bottle filling production line, and all other auxiliary equipment.
Our engineers are located all over the world and can provide safe and fast service to your beverage production solutions in your country.
